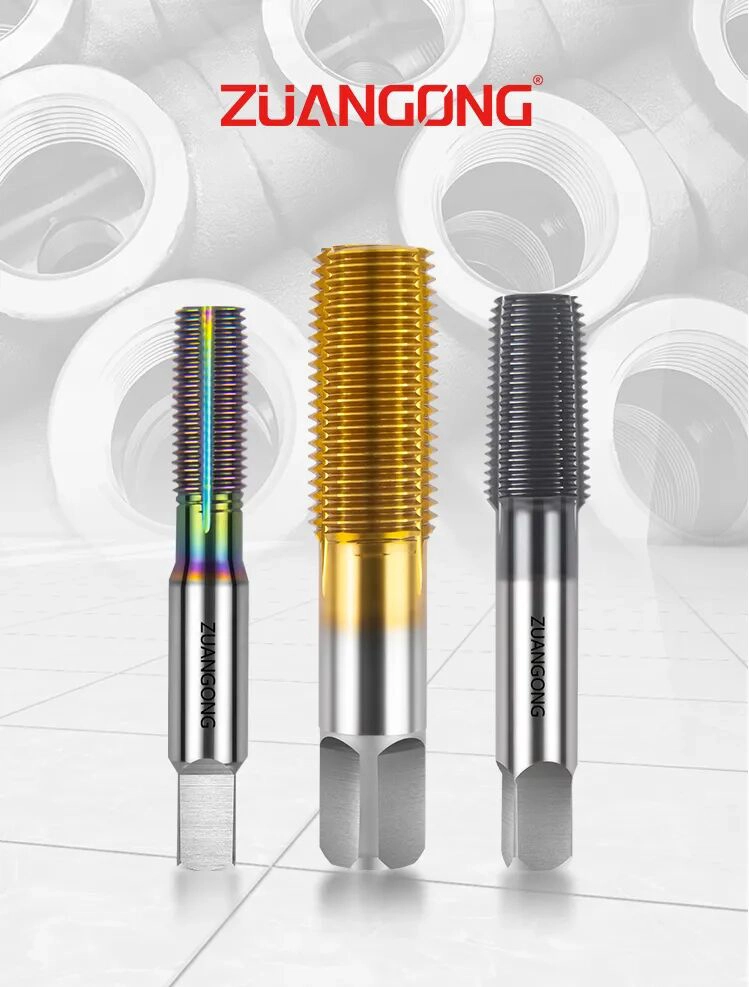

ZUANGONG G-NRT Pipe Extrusion Tap: Precision Tool for High-Quality Thread Machining

 In the field of precision manufacturing, every fraction of accuracy and every bit of surface smoothness relies on the pursuit of superior tools. For industries like pipeline connection, valve body manufacturing, and mechanical equipment assembly, high-performance internal threads are critical to ensuring sealing, safety, and durability. To address the common pain points of traditional cutting taps—such as chip removal difficulties, rapid wear, and insufficient thread precision—ZUANGONG has launched the G-NRT Pipe Extrusion Tap, a specialized tool integrated with high-end materials, advanced coating technology, and exquisite craftsmanship.

Premium Base Material: HSSE Cobalt Steel from NACHI (Japan)

The performance of a tool starts with its base material. For the ZUANGONG G-NRT Pipe Extrusion Tap, we select HSSE cobalt high-speed steel from NACHI, a renowned Japanese special steel enterprise, as the core substrate. NACHI is globally recognized for its consistent production system from material to finished product and its commitment to quality, and its HSSE cobalt steel brings exceptional properties to the tap:

- Enhanced Hardness & Wear Resistance: The addition of cobalt significantly improves the steel’s red hardness and wear resistance at high temperatures. Even under continuous, high-speed machining conditions, the tap maintains sharpness and dimensional stability for extended periods.

- Excellent Toughness: Through special melting and heat treatment processes, the internal structure of the material becomes more uniform and pure, reducing the occurrence of microcracks. This gives the tap strong impact resistance, greatly lowering the risk of chipping or breaking during operation.

Choosing NACHI HSSE as the base material lays a solid foundation for the tap’s reliable performance, ensuring it can withstand the rigors of precision thread machining.

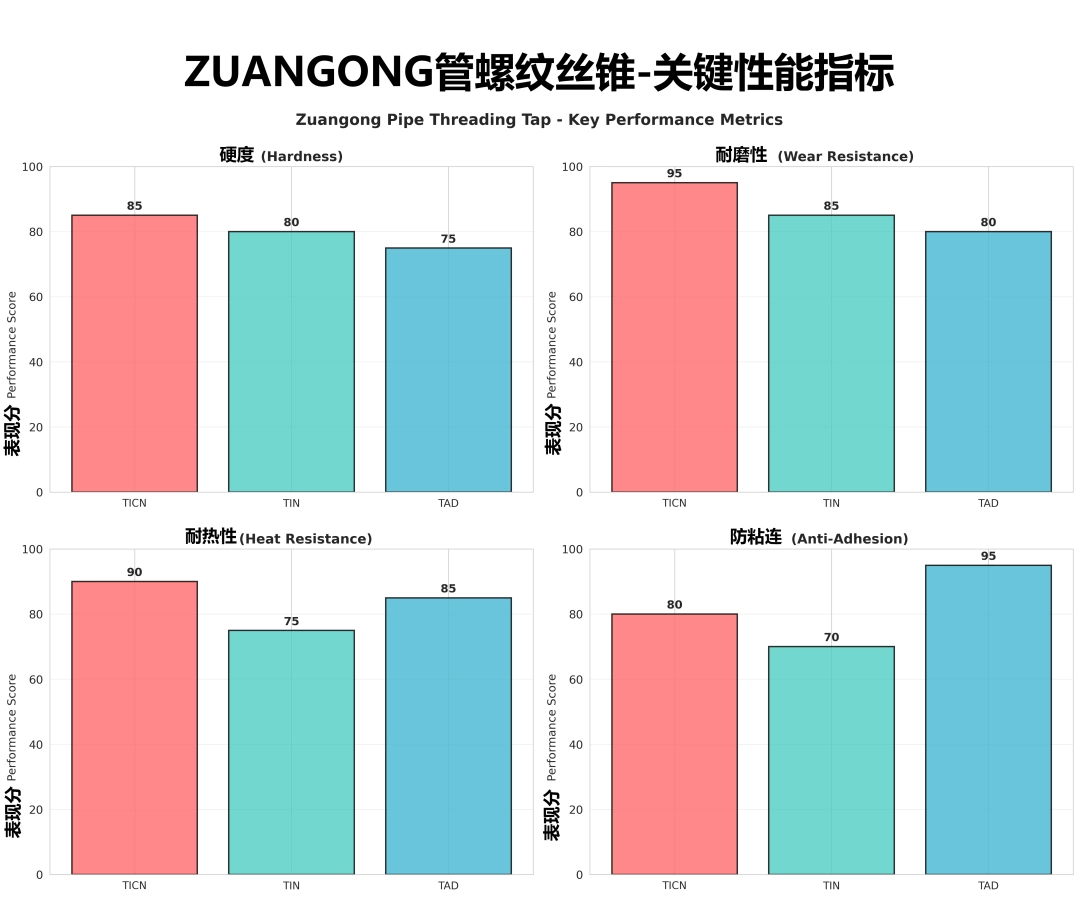

Three Advanced Coating Options for Diverse Working Conditions

If high-quality base material is the "core strength" of the tap, advanced coating technology is its "protective armor." ZUANGONG equips the G-NRT Pipe Extrusion Tap with three high-performance coatings, tailored to different complex machining environments and material characteristics:

1. TiN Coating: Features high hardness and low friction coefficient, suitable for machining general metals like carbon steel, alloy steel, and non-ferrous metals. It effectively reduces wear and improves the tap’s service life in daily production.

2. TiAlN Coating: Boasts excellent high-temperature resistance and oxidation resistance, ideal for machining high-hardness materials such as stainless steel and heat-resistant steel. It maintains stable performance even in high-temperature machining scenarios.

3. CrN Coating: Offers superior corrosion resistance and adhesion, perfect for machining non-ferrous metals with high viscosity (e.g., aluminum, copper) and materials in humid or corrosive environments. It prevents material adhesion and ensures thread surface quality.

These coatings adapt to different machining challenges, enabling the tap to deliver consistent results across various workpieces.

Key Advantages of ZUANGONG G-NRT Pipe Extrusion Tap

- Chip-Free Machining for Efficiency & Environmental Friendliness: Unlike traditional cutting taps, extrusion taps form threads through metal plastic deformation, producing no chips. This completely solves chip removal issues, especially for blind hole machining, and keeps the working environment clean while improving production efficiency.

- Higher Thread Strength: The metal fibers of extruded threads remain continuous (not cut off), resulting in better tensile strength, shear resistance, and fatigue resistance compared to cut threads. This enhances the overall reliability of assembled components.

- Superior Surface Finish: Cold working hardening during extrusion improves the thread surface finish, reducing friction torque and enhancing sealing performance—critical for pipeline and valve applications.

- Extended Service Life: The combination of NACHI HSSE base material and advanced coatings significantly boosts the tap’s durability, reducing tool replacement frequency and overall production costs.

About ZUANGONG

ZUANGONG has years of experience in precision tool manufacturing, integrating top Japanese material technology with mature craftsmanship. The G-NRT Pipe Extrusion Tap is more than a tool—it’s a commitment to precision and efficiency. We don’t just provide high-quality products; we also offer comprehensive solutions for your machining challenges, including technical support and customized recommendations.

For more information about the ZUANGONG G-NRT Pipe Extrusion Tap or to discuss your thread machining needs, feel free to contact us today.
